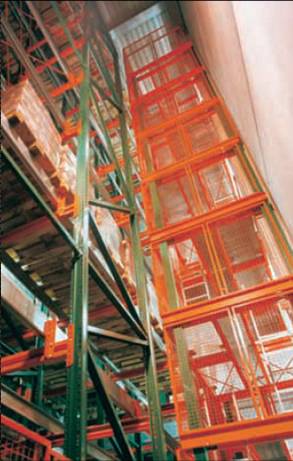

Pallet elevator

The elevator is used as vertical transporting means for several stops. Entry and exit of the pallets can take place from all sides with the same axial direction. The case components may optionally include roller segment, chain segment or turning corner station. The cage weight iy by far compensated by counterweights. At elevator top the lifting drive is installed with the fine motion gear-box. This gearbox ensures an exact positioning of the cage at the individual stops. The frame of the lift is in galvanised design and lined with woven mesh. The design as double elevator enables the simultaneous transport of two pallets one after another. The lifting device as chain design is single or double conveyor depending on performance.
